Draw Mondrian Art with coding at www.wescheme.org

Mondrian Art Example 3

The graphic image below right was created by the programming code on the left.  See below image for complete copy of the code.



Actual editable code http://tinyurl.com/mondrian-ex3

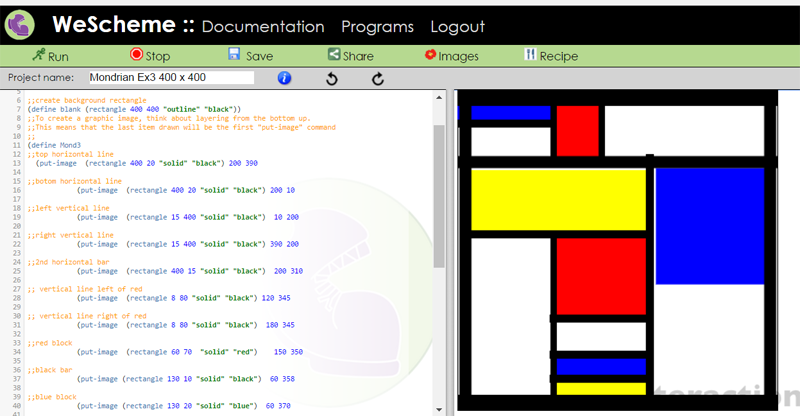

Ex3 screen capture

;;Coding Mondrian like art (image3)
;;This code is written to run in WeScheme programming environment
;;any word/s after semicolon is a comment, when you press enter the next lines begins as code

;;create background rectangle
(define blank (rectangle 400 400 "outline" "black"))
;;To create a graphic image, think about layering from the bottom up.
;;This means that the last item drawn will be the first "put-image" command
;;
(define Mond3
;;top horizontal line
  (put-image  (rectangle 400 20 "solid" "black") 200 390

;;botom horizontal line
            (put-image  (rectangle 400 20 "solid" "black") 200 10

;;left vertical line
            (put-image  (rectangle 15 400 "solid" "black")  10 200

;;right vertical line
            (put-image  (rectangle 15 400 "solid" "black") 390 200

;;2nd horizontal bar
            (put-image  (rectangle 400 15 "solid" "black")  200 310

;; vertical line left of red
            (put-image  (rectangle 8 80 "solid" "black") 120 345

;; vertical line right of red
            (put-image  (rectangle 8 80 "solid" "black")  180 345

;;red block
            (put-image  (rectangle 60 70  "solid" "red")    150 350

;;black bar
            (put-image (rectangle 130 10 "solid" "black")  60 358

;;blue block
            (put-image (rectangle 130 20 "solid" "blue")  60 370

;;black bar below yellow
            (put-image (rectangle 230 10 "solid" "black") 120 220

;;black bar to right yellow
            (put-image (rectangle 10 360 "solid" "black") 240 140

;yellow block
            (put-image  (rectangle 230 80 "solid" "yellow") 120 260

;; vertical line left of red/blue/yellow
            (put-image  (rectangle 8 220 "solid" "black") 120 110

;;black bar below red
            (put-image (rectangle 130 10 "solid" "black")  180 115

;;black bar above blue
            (put-image (rectangle 130 10 "solid" "black")  180 70

;;black bar below blue
            (put-image (rectangle 130 10 "solid" "black")  180 40

;;2nd red block
            (put-image  (rectangle 120 100 "solid" "red") 180 170

;;2nd blue block
            (put-image  (rectangle 120 30 "solid" "blue") 180  50

;;2nd yellow block
            (put-image  (rectangle 120 20 "solid" "yellow") 180 30

 ;;3rd blue block
            (put-image  (rectangle 145 145 "solid" "blue") 320  230
                        blank))))))))))))))))))))))
Mond3
